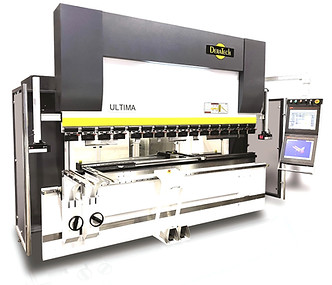

DERATECH ULTIMA
Standard Specifications:
​
Deratech Ultima is a high-end CNC controlled press brake with hydraulic crowning. The Ultima is equipped with 5 CNC controlled axes (Y1, Y2, X, R, V). Options up to 18 CNC-controlled axis.
An extremely high level of accuracy is obtained during the movement and final positioning of the upper beam due to the continuous monitoring and feedback of the encoder measuring data. Using this technology, a repeatability of approximately 100% (+/- 0.01 mm) can be guaranteed. The synchro system permits two or more machines to be connected together in tandem to provide working lengths of 20 meters or longer and tonnage up to 1250 ton of pressing force. In this tandem configuration, the individual machines can still be used separately.​
​
-
​Standard 5 axis machine Y1 Y2 X R + V (CNC Crowning)
-
Available options for Z1/Z2, R1/R2, X1/X2
-
Extra large throat & daylight (open height)
-
Corrections database
-
CNC Hydraulic Crowning
-
Sliding front support arms
-
Remote assistance
-
Available with E drive or hybrid system
​
Also available on request:
​
-
D-Alpha: Automatic angle measurement system
-
D-STM: Automatic sheet thickness measuring
-
Bending aids
-
Automatic hydraulic hemming
-
Servo controlled moving table
-
X3
-
Backgauge with pneumatic support system
-
Barcode Scanner
-
Dual screen options
The automatic hydraulic hemming is integrated in the table of the machine, no tool changing or not-user friendly operations needed to perform the bend. This system allows operators to bend larger sized parts without the assistance of another operator.
Automatic sheet thickness measuring system integrated in the backgauge finger. The D-STM measures the sheet thickness to an accuracy of +-0,01mm and applicable up to 20mm of material thickness. The measuring cycle takes only tenths of second, the measured data will be send in real time to the CNC and the bending program will be adjusted.
CNC CONTROLLER
Choice of controllers at your disposal - you could stick to the standard ESA VIS-860W or we can offer you the DELEM 66T / 69T, CYBELEC Modeva Series - depending on your individual preference.
BACKGAUGE
Standard dual rail sturdy backgauge running on high precision ball screws gives you high accuracies and repeatability.
​
​
COMPONENTARY
Deratech uses only high quality componentry on all its machines. Stringent quality checks are in places to ensure a perfect machine leaves the shop floor.
FRONT SUPPORTS
Standard front support arms running on linear rails allows easy adjustability during operation. Option to upgrade the the handwheel options for height adjustment.
​
​
SLIM TABLE
All Deratech Press Brakes comes standard with a slim table making it very useful for Z bends.
​
​
PRESS BRAKE TOOLS
Get access to high quality Italian made GIMEC tooling for your machine. We offer standard as well as custom made tools.
​
QUICK RELEASE
The Ultima comes standard with the KYOKKO Quick Release System which allows vertical & horizontal dual stage tool clamping. The tools can either be clamped by inserting vertically or sliding horizontally.
Laser Safety
All Deratech Press Brakes are equipped with the industry latest Category IV Laser Safety System. The machines are fully CE compliant and in line with the local regulations.
​
